C.1. Introduction to the Respiratory System

Page Links:

B. Do you remember how an old-fashioned air bellow works?

A. A simple introduction:

The respiratory system consists of several parts:

the upper airways
the lungs (left and right)
the blood vessels
the chest wall
the brain

The task of the respiratory system is to get fresh air, especially oxygen (O₂), into the lungs and to get rid of the gaseous waste, carbon dioxide (CO₂), that we are constantly producing (with our metabolism).

The upper airway transports the air between the outside world and the lungs. It consists of:

the nose (nasal cavity)
the mouth (oral cavity)
the pharynx
the larynx
the trachea
the bronchial tree

The lungs are the organs where fresh air gets very close to the blood. This occurs in the alveoli (singular: alveolus), at the end of the bronchial tree. In this location, the gas exchange between air and blood occurs.

So, the respiratory system also needs arteries to bring oxygen-poor blood to the lungs and veins to take oxygen-rich blood away from the lungs. This blood is pumped, through the lungs, by the right heart (link see Introduction CVS).

Crucial for a proper functioning of the respiratory system is the chest wall and the diaphragm. These can expand and contract, thereby expanding the size of the chest, which, in turn, expand or constrict the lungs.

Finally, in contrast to the heart, which has its own pacemaker, the lungs are not automatic; they don’t have a pacemaker. Instead, the “pacemaker” of the lungs is located in the brain, in the brain stem.

Without your brain, no respiration!

B. Do you remember how an old-fashioned air bellow works?

top?

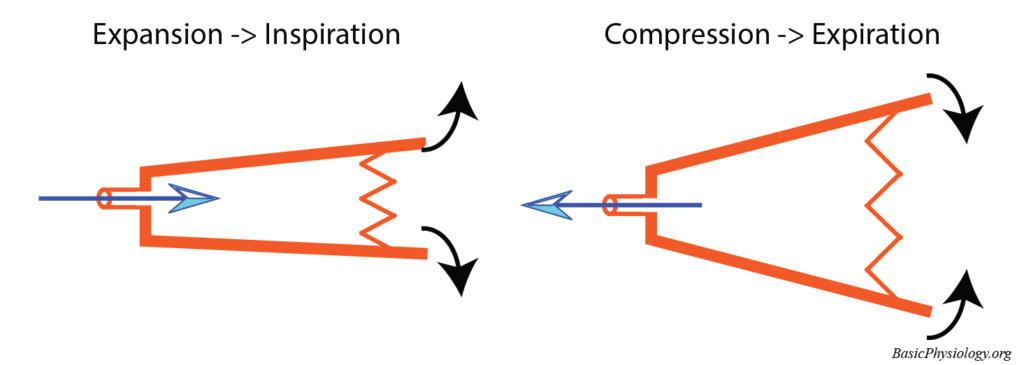

The bellow is used to blow air into a fireplace. This makes the fire much hotter; by blowing more oxygen into the fire. Also often used by the blacksmith to make the fire hotter.

To get it to work, you first have to expand the bellow, thereby sucking air into the bellow.

Then, by compressing the bellow at the two handles, one “pushes” the air forcefully into the fireplace.

The lungs work in the same manner. Expansion of the chest (expansion of the bellow) will make the air flow into the lungs; this is inspiration!

The opposite action, compressing the bellow, or the chest, will push the air out of the lungs; this is called expiration.
